Simaudio Announces Moon 700i V2 Integrated And 780D V2 Streaming DAC

June 21st, 2019

The 700i v2 Integrated Amplifier

Design features

  • Our "Lynx" Technology eliminates the global feedback loop and results in the following: more accurate musical reproduction with respect to tonality; the elimination of common phase errors resulting from feedback.

  • An oversized dual-mono power supply.

  • “Class A” power output to 5 watts for greater efficiency.

  • Gain offset adjustment of ±10dB for each input.

  • Any input is configurable to become a “bypass input”, whereby the 700i v2’s volume control is bypassed, permitting a plethora of applications including usage in a home-theater environment.'

Specifications

  • Output Power at 8Ω

    175 W per channel

  • Output Power at 4Ω

    350 W per channel

  • Input Impedance

    23 700 Ω

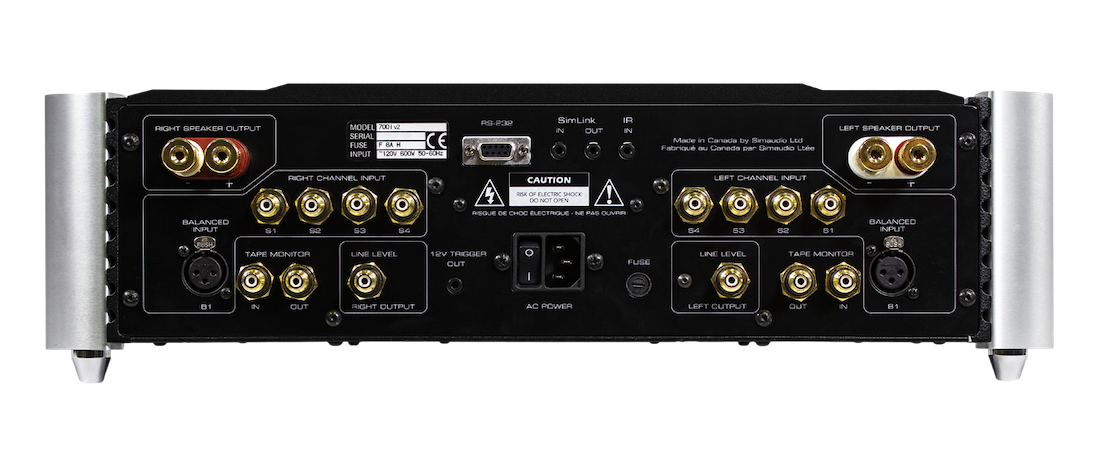

  • Inputs (RCA / XLR)

    4 pairs / 1 pair

  • Monitor Loop (RCA)

    1 pair

  • Gain

    37 dB

  • Frequency response (full range)

    10Hz - 100kHz +0/-0.1dB

  • Crosstalk @ 1kHz

    -100 dB

  • THD (20Hz - 20kHz @ 1 W)

    0.015 %

  • THD (20Hz - 20kHz @ 175 W)

    0.04 %

  • Intermodulation distortion

    0.02 %

  • Shipping weight

    62 lb / 28 kg

  • Dimensions (width x height x depth)

    18.75 x 5.5 x 18.1 in
    47.6 x 14.0 x 46.0 cm

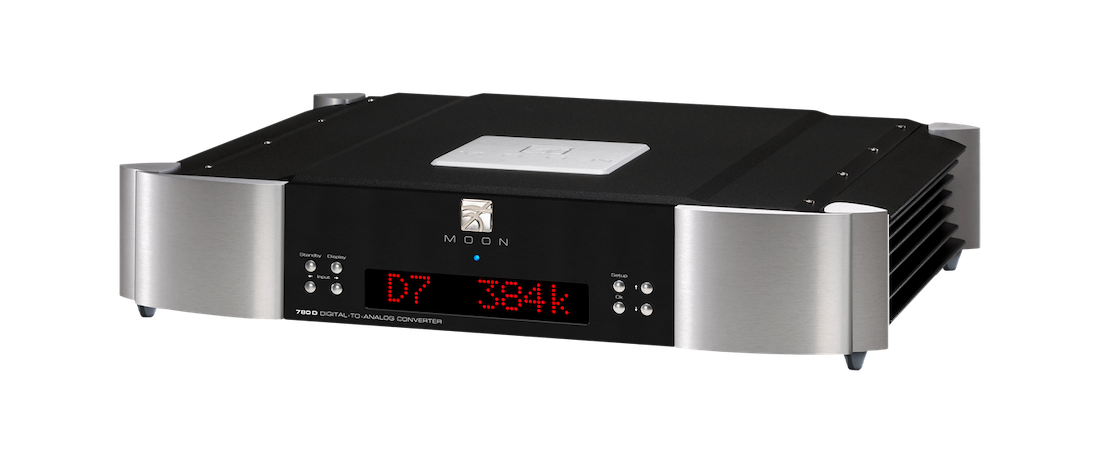

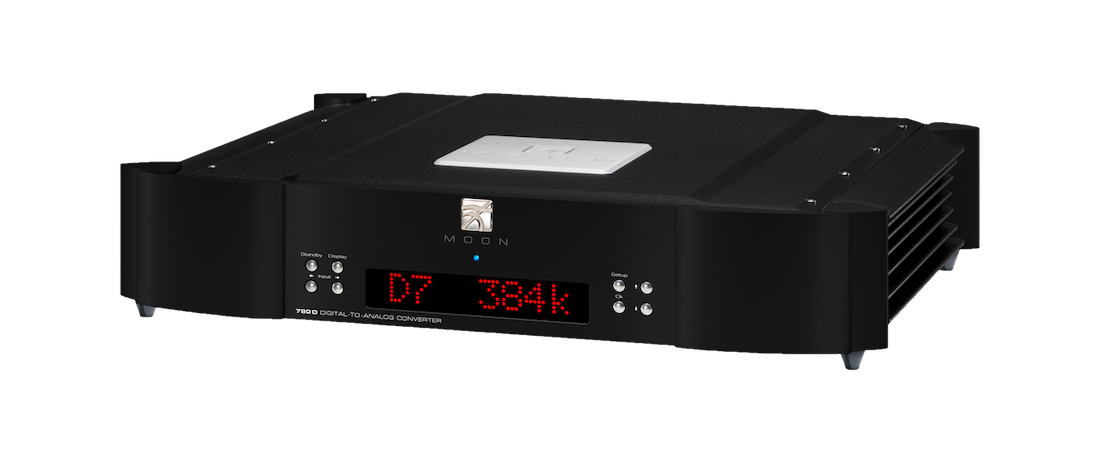

The 780D v2 Streaming DAC

Design features

  • Roon Ready device

  • DSD and MQA decoding from all digital inputs

  • Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services

  • Multi-room synchronized playback

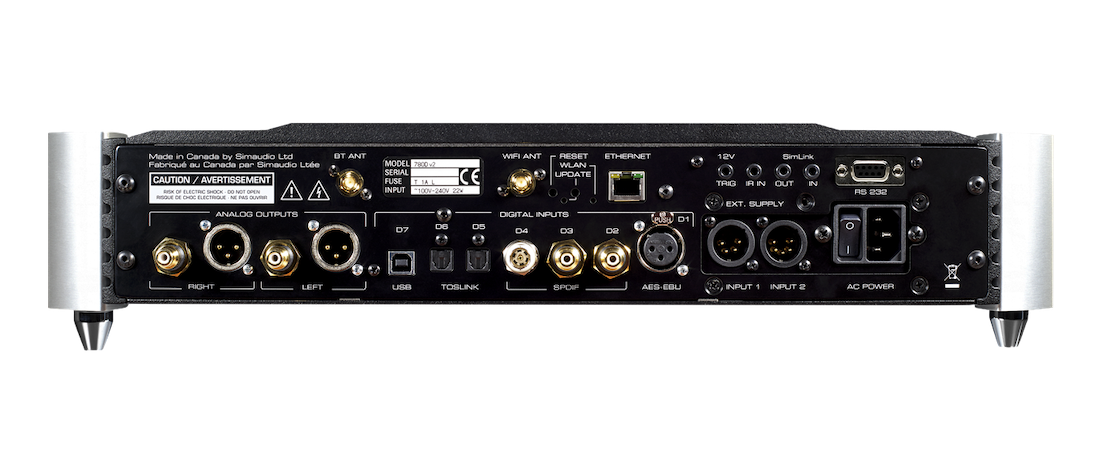

  • 9 digital inputs : USB, AES/EBU, SPDIF, Optical, Ethernet, Wi-Fi and aptXTM audio for Bluetooth®

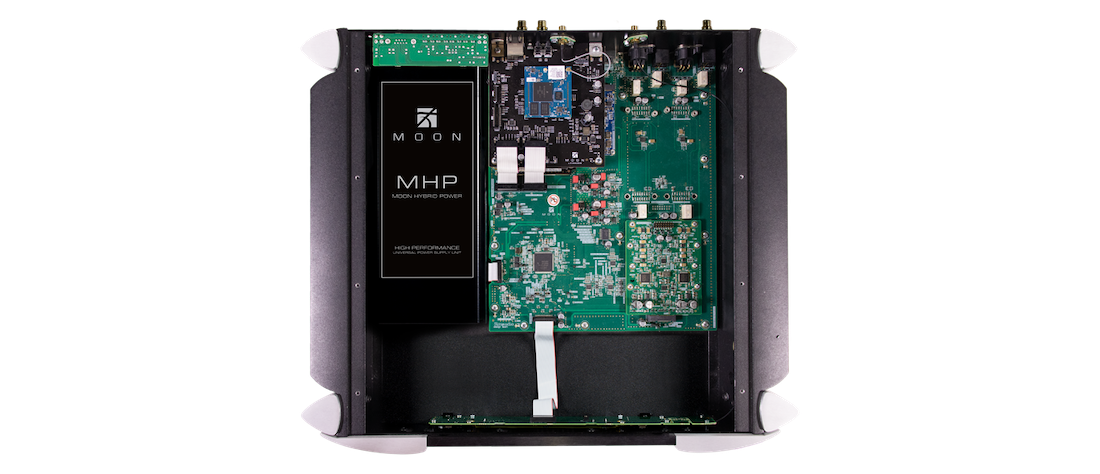

  • Power supply using new MOON Hybrid Power (MHP) for exceptionally stable, ultra low noise DC output

  • Femto second clock resulting in much lower jitter and consequently lower distortion

Specifications

  • Frequency response (full range)

    2Hz - 100kHz +0/-3dB

  • THD @ 1kHz, 0dBFS (A-weighted)

    0.0001 %

  • Intermodulation distortion

    0.0001 %

  • Dynamic Range

    124 dB

  • Signal-to-noise Ratio

    124 dB @ full output

  • Channel Separation

    120 dB

  • Intrinsic Jitter

    150 femto seconds RMS

  • Analog Output @ 0dBFS

    2.0 V

  • Analog output impedance

    100 Ω

  • PCM Bit-depth range

    16 - 32 bits

  • PCM sampling frequency rates

    44.1 - 384 kHz

  • DSD sample rates

    DSD64, DSD128 & DSD256

  • Shipping weight

    38 lb / 17 kg

  • Dimensions (width x height x depth)

    18.75 x 4.0 x 16.8 in
    47.6 x 10.2 x 42.7 cm
